XRV

718

Mercedes-Benz Arocs 5

NOW FOR SALE

The new model XRV 718, based on the chassis of the new Mercedes Arocs 2040 with a 4800 mm wheelbase.
This model comes as a fully finished, turnkey motorhome, deliverable by October 2025.

Vehicle description

Engine OM470, R6, 10.7 l, 290 kW (394 hp), 1 900 Nm

Series Mercedes-Benz Arocs 5

Cabin L-cabin ClassicSpace, 2.30 m, tunnel 320 mm

Wheelbase 4 800 mm

Fuel tank volume 500l

Vehicle type Four-wheel drive chassis

Permissible total weight 18 000 kg

More

High Performance Engine Brake

Transmission oil cooling

Transmission support arms, optimized for removal Transfer case

VG 2800-3W/1.45-1.04, permanent oil cooler, for transfer case

Mercedes PowerShift 3

PowerShift Advanced

Off-road drive program

AdBlue tank 60 l, left

Light sensor

Rain sensor

Driver‘s suspension seat, climate control

Swivel passenger seat, climate control

Leather steering wheel

Navigation system

Auxiliary hot water heating, cab

Predictive Powertrain Control

Cruise control

Description of the construction

The internal dimensions of the structure

5900 x 2300 x 2000 mm
More
  • The walls of the building are made of sandwich panels with a thickness of 70 mm (GRP, PU, PET)
  • The body is equipped with high-quality double-glazed aluminum windows, entrance doors and garage openings
  • The truck contains three high-strength aluminum boxes suspended under the body.
  • Included in the price is a 750 kg folding hydraulic rear platform, which is equipped with a spare wheel and can be used as a motorcycle or quad carrier.
  • The vehicle is equipped with a four-point swivel attachment of the body to the chassis to maintain mobility in use and reduce the load on the body.
Air conditioning
  • Air conditioning Truma Saphir Comfort
  • Recuperation unit
  • Central tire inflation system
Appliances
  • Fridge 1: Vitrifrigo C180 (157L fridge)
  • Freezer/Fridge: Vitrifrigo DRW70A (80L freezer/fridge)
  • Induction cooktop SIEMENS EX375FXB1E iQ700
  • Hood CK 500 Dometic

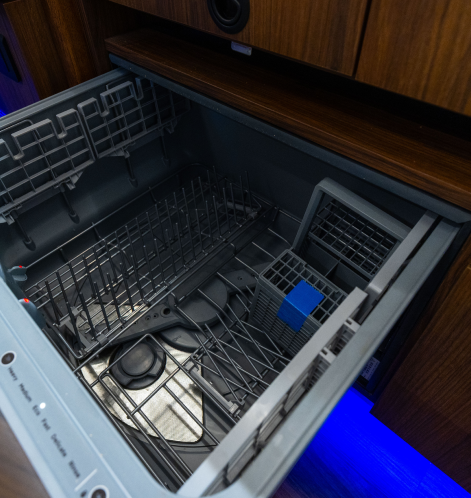

  • Dishwasher Fisher & Paykel
  • Microwave with oven
  • Franke waste bin
  • 27" monitor with mount
  • NEI NWM3-WMW wall-mounted compact
  • Dyson vacuum cleaner
  • Tablet
Module body
  • Highly thermally insulated box with aluminium surround
  • Floor panel 2400 x 5075mm
  • Walls - PU/PET sandwich panels 70mm - composition externally 2mm laminate, PET 10mm, PU 56mm, 1.5mm laminate
  • Bathroom walls and bed panels, PU panel 40mm - composition 1.5mm laminate, PU foam, 1.5mm laminate
Box - lower storage compartments
  • Rear AL box bevelled - custom made with lever lock, single key system, painted, 2pc
  • Side AL box - custom made with lever closure, one key system, painted, 2pcs
  • Protective covers – for tank, exhaust
  • Side covering for wheels and tank
Cabin/ Module
  • Passage cabin and superstructure - cabin door - connecting accordion - external works
  • Seating with integrated belt inside the superstructure, 2 seats, attachment design
  • Painting of superstructure - external work
  • Front frame on cab
  • Additional lights above the cab
  • Upper protective frame on the superstructure
Upholstery
  • Seating with high-quality microfiber upholstery
Entry & doors
  • Entrance door with three-point lock
  • Mosquito net for entrance door
  • Insert with dust cover - master key system, 7 pcs
  • Additional door lock, inside
  • External stairs with electric control, lighting and safety switch
Extension electronics - monitoring
  • Control panel switches:
  • Main panel switch
  • Interior lighting
  • Water pump
  • Heating
  • LCD indicator lights:
  • Clean water tank level (%)
  • Waste water tank status (%)
  • Status of superstructure and engine batteries, voltage
  • Outside and cabin temperature
  • 230 V connection indication
  • Date and clock with alarm function
  • Warning:
  • Full waste water tank
  • Empty clean water tank
  • Low battery voltage
  • Extended steps
  • Extension door opening
  • Faucet control unit
  • Superstructure battery capacity indicator
  • Discharge - charging current indicator
  • Combination charger control

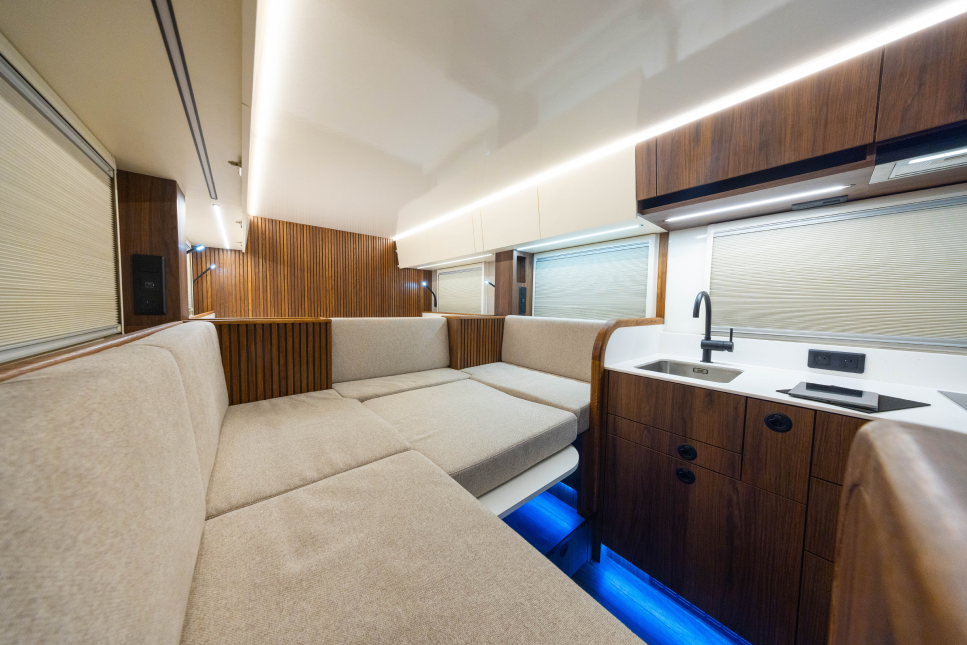

Furniture
  • Doors and overhead cabinets with stainless design hardware
  • Lower cabinet doors and hardware
  • Kitchen cabinets with drawer and door fittings
  • High-quality wooden table with adjustable central leg
  • Cold foam mattress 160x215 cm, 14 cm thick, on wooden slats
  • Ceiling LED lighting – warm white 2000–3000K
  • Accent RGB LED lighting – warm white 2000–3000K
  • Vinyl flooring
  • Wall panels around kitchen with splash protection
  • Kitchen countertop from artificial stone (per sample book)
  • Soft-close drawer slides and fittings
  • Built-in waste bin for sorted waste
  • Bathroom cabinet
  • Bathroom mirror cabinet
  • Artificial stone shelf for sink placement
Garage
  • Garage door on both sides
  • Airline system
  • Rubber floor
  • Lighting
Hydraulic platform and winch
  • DHollandia
  • Paintwork
  • Rear stainless steel gantry
  • Electric winch 20,000Lb, 24V, steel cable
  • Fasteners
Heating
  • Water heating from Sheer Heizung
  • Hot water booster
  • Heating system warmed by vehicle engine
  • Convector heaters
  • Heated towel rail (in bathroom)
  • Floor heating
  • Installation materials and distribution: valves, pumps, insulation
System equipment, electrical, solar
  • Solar system FV 2000 Wp
  • Solar panel mounts
  • Victron Orion-Tr Smart 24/24-17A, 3 pcs
  • GLW LiFePO4 Battery 25.6V 800Ah
  • Victron Multiplus Inverter 24V 5000VA
  • Antennas – 5G, GSM
  • Starlink preparation
  • Switches, outlets 230V / USB-C / HDMI
  • Rear-view camera
  • Thitronik G.A.S Pro CO and narcotic gas detector
  • 5G router
  • Control panel
  • Cables, fuses, disconnects, electrical components, DIN rails, mounts, connectors, socket and plug controllers
Tanks
  • Freshwater tank 500L with insulation, filled via hose and quick coupling
  • Grey water tank 150L – drained from cabin
  • Black water tank 100L – drained from cabin
  • Heated grey tank with water heating circuit
  • Ultrasonic level sensor for freshwater tank
  • Ultrasonic level sensor for grey water tank
  • Ultrasonic level sensor for black water tank
Water system installation
  • Central automatic water pump with expansion tank

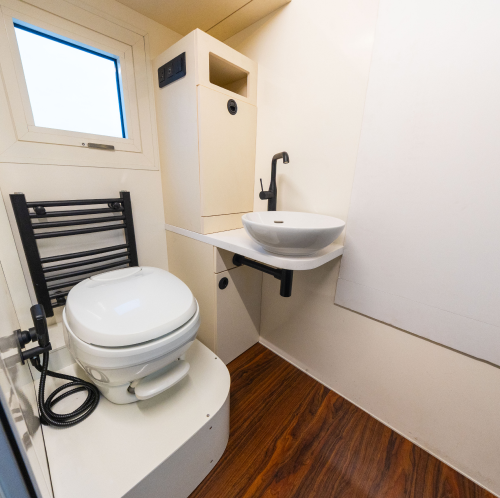

  • Toilet Thetford Bravura Low
  • Bidet shower
  • Electromagnetic valves to tanks
  • Porcelain sink in bathroom
  • Franke Anton ANX 110-34 kitchen sink-

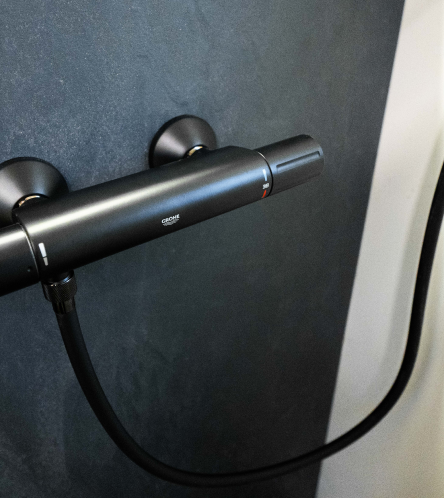

  • Shower panel with lever-type concealed mixer
  • Lever faucet in bathroom
  • Kitchen faucet for utility water
  • Electromagnetic valve 1.5” for gray water tank drain
  • Electromagnetic valve 2” for black water tank drain
  • Water fill point with valves, socket for external electrical connection
  • Installation materials and water plumbing
  • Outdoor shower
Windows
  • Windows 65 x 40 cm, 6 pcs
  • Windows 35 x 35 cm, 2 pcs
  • Blinds with mosquito net and blackout for 65 x 40 cm windows, 6 pcs
  • Blinds with mosquito net and blackout for 35 x 35 cm window, 1 pc
